Description

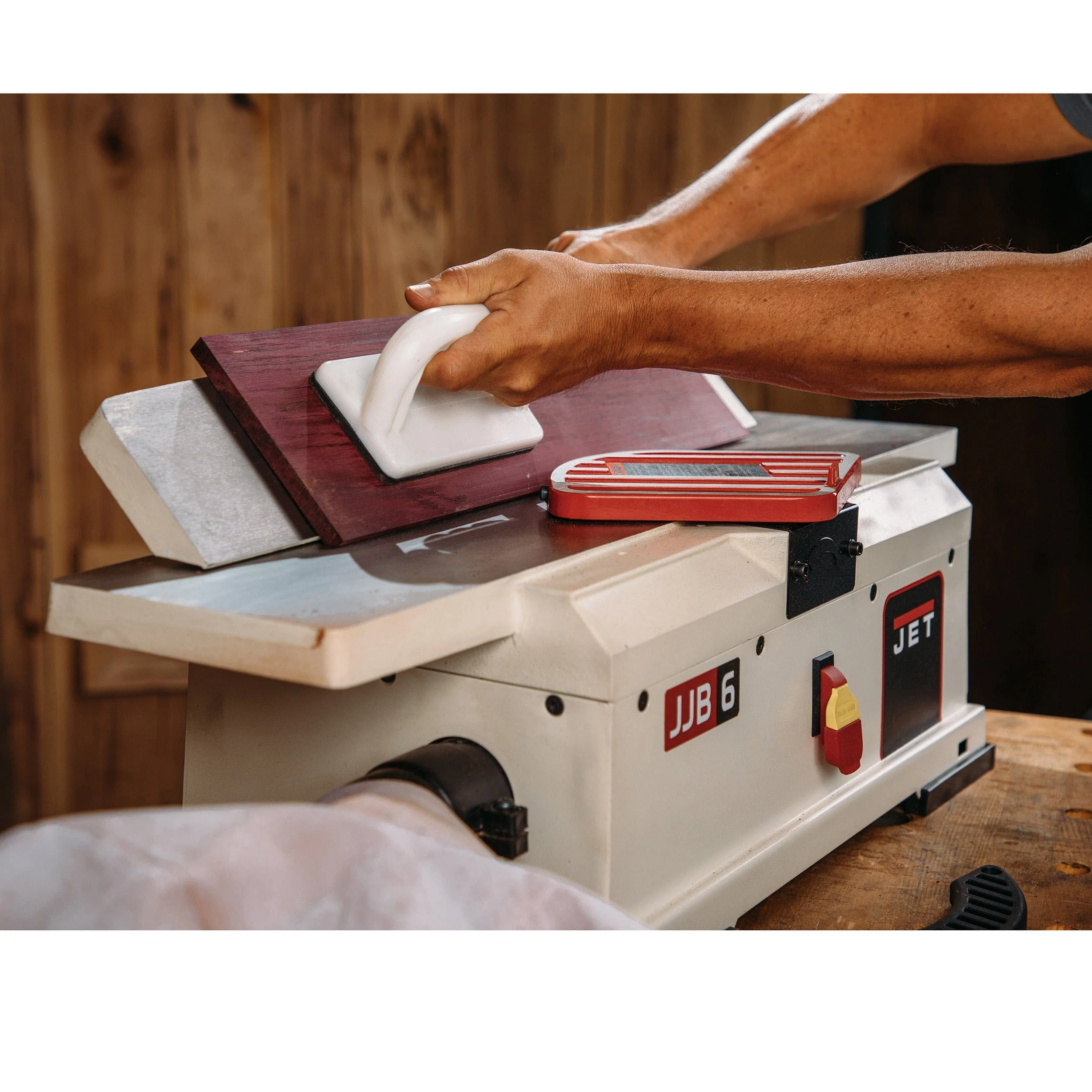

From JET®, the 6″ JJ-6HHBT Benchtop Jointer, Model 718600 provides a smooth and consistent cut surface thanks to its use of 14 carbide tipped Helical Heed Blades. The heavy-duty cast-iron tables and fully adjustable fence make for a premium cutting experience. Features include a fully adjustable cast iron fence, internal dust collection system and safety push block and push stick.

Features

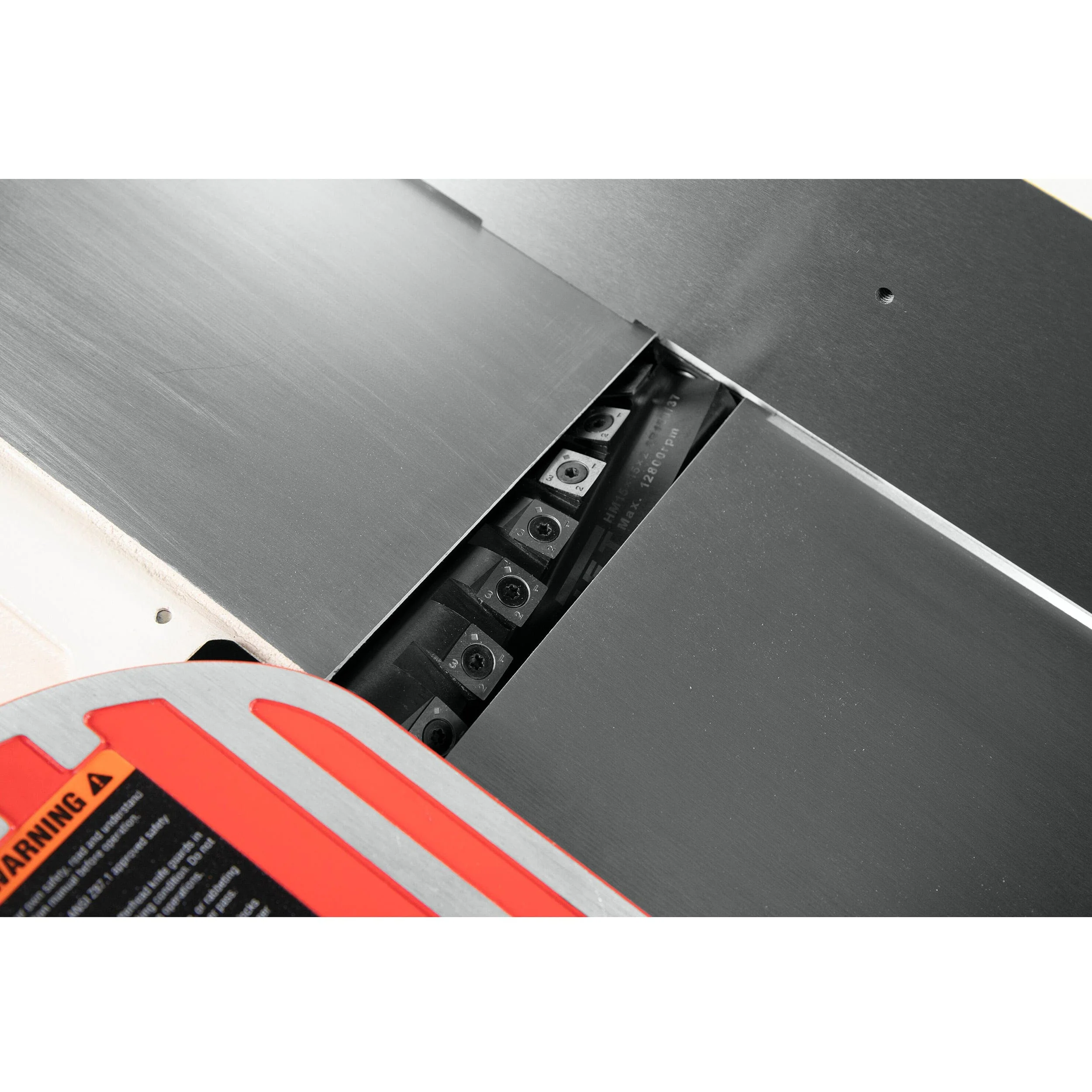

• True helical cut with 14 index able four-sided carbide blades
• Heavy-duty cast-iron tables
• Large cast iron fence
• Fully adjustable fence with locking stops at 4 +/-45 tilt dual direction for beveling
• Internal blower motor moves dust and chips away from motor and cutter head
• Powerful 1 HP. 15 Amp motor turns the cutter head at 10,000 RPM’s
• Highly visible scale accurate depth of cut adjustments
• Front mounted toggle switch with removable safety key
• 6″ jointing capacity in a small footprint
• Large dust collection bag with a quick empty zipper

Specifications

• Product: Jointer
• Style: Benchtop
• Type: Helical Head
• Motor: 1 HP, 1 PH, 115V
• Helical Cutters: 14 – 4 sided Carbide
• Cutter Size: .59″L x .59″W x .10″, R6/37 degree
• Fence Tilt and Positive Stops: 45 degrees L, 90 degrees, 45 degrees R
• Infeed Table Length: 45″
• Table Size: 28-5/8″ x 6-1/4″
• Cutter Speed: 10,000 RPM
• Fence Size: 22-3/4″ x 4-3/8″
• Cutting Capacity: 6″
• Cuts Per Minute: Continuous
• Cutterhead Diameter: 2″
• Maximum Stock Removal: 1/8″
• Dust Port: 2-1/2″ O.D.
• Recommended Breaker Size: 15Amp
• Sound Rating: 92 dB
• Overall Size: 11.5″ H x 32.75″ L x 15:W
• Ship Weight 71lbs
• Actual Weight: 67lbs

Includes

• JET® 6″ Benchtop Jointer – 1 HP 1 Ph 115V – Helical Cutterhead – JJ-6HHBT
• Angle Fence
• Filter Bag
• Dust Chute
• Push Block
• Push Stick
• Star Point Screwdrivers
• Hardware Pack
• Operator’s Manual
