Description

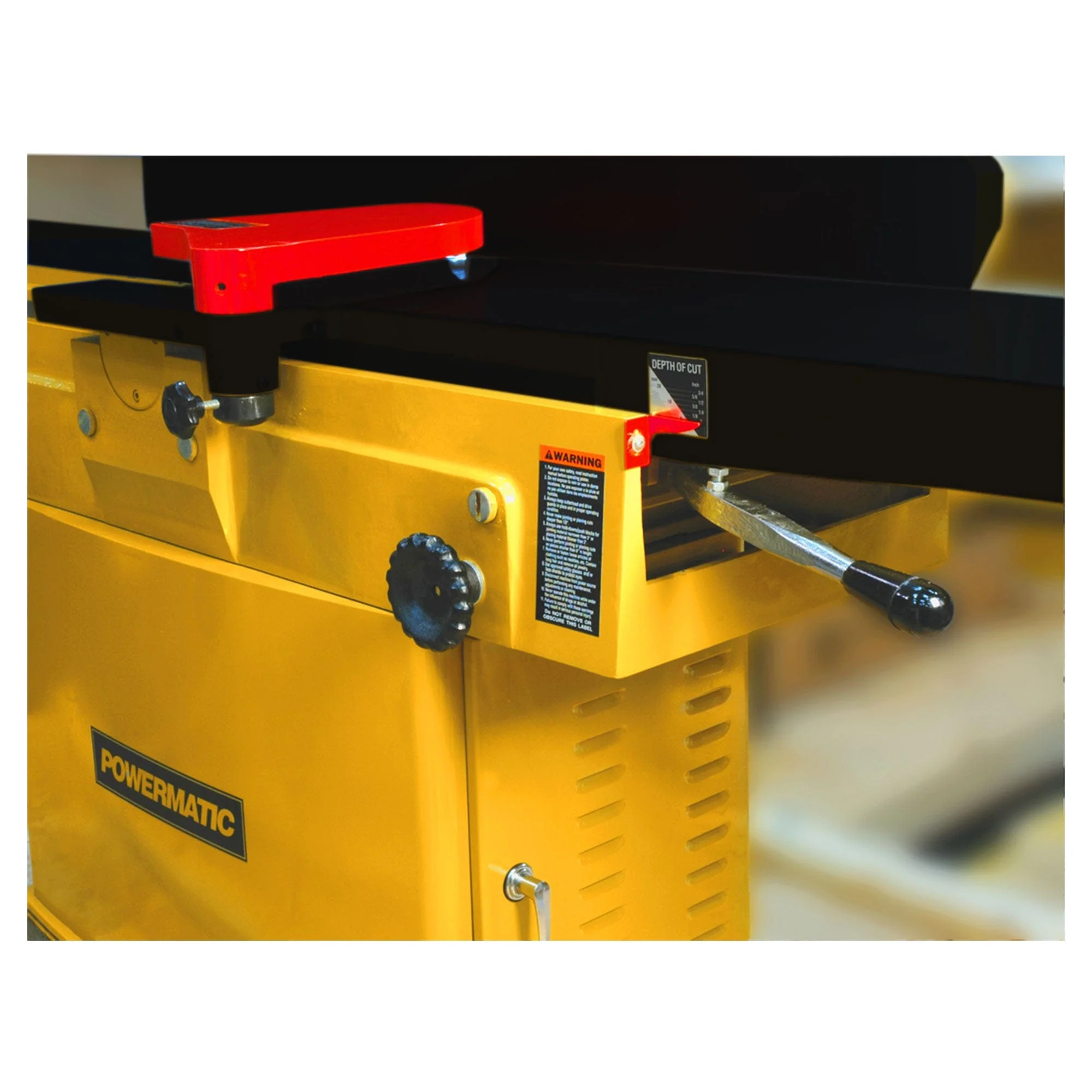

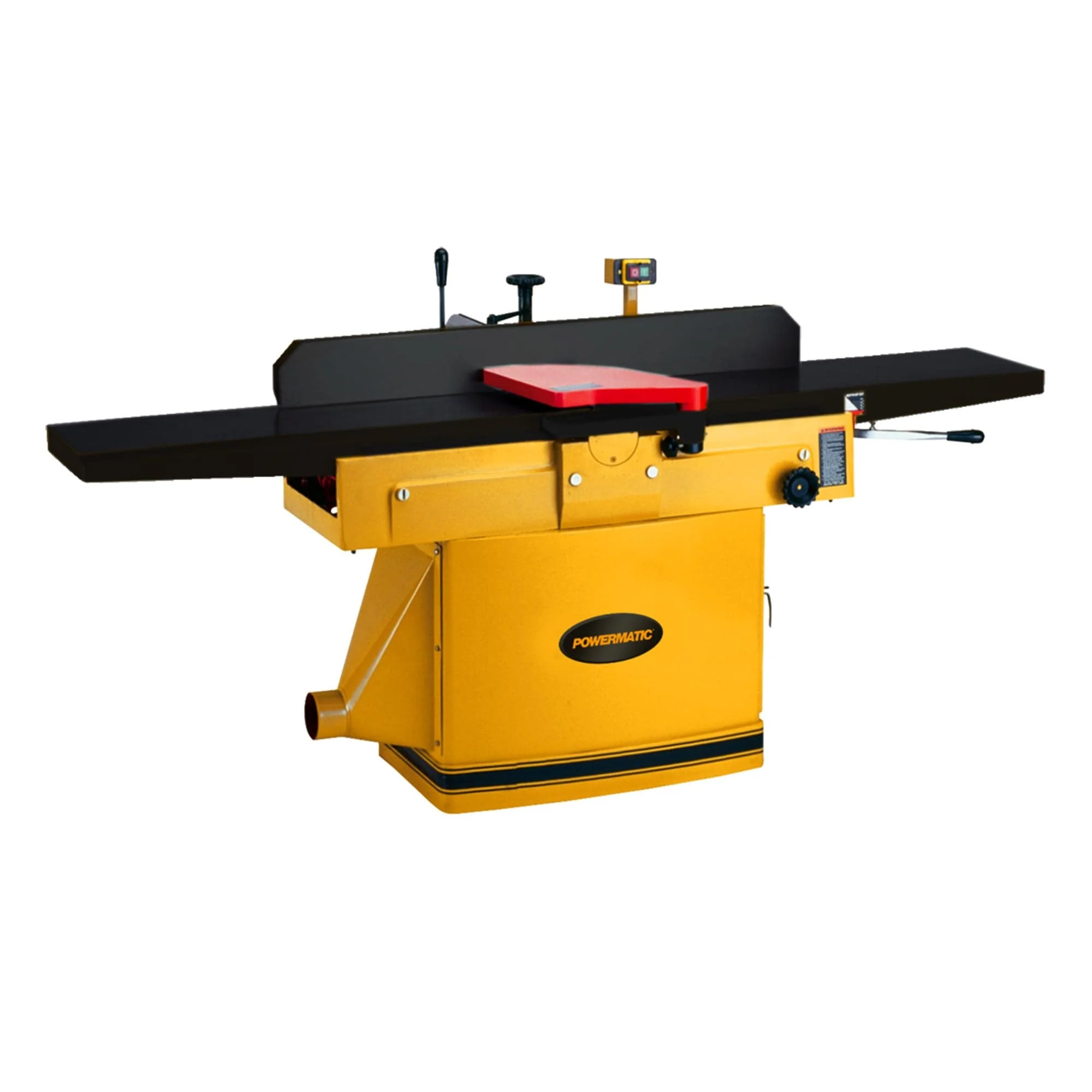

12″ Jointer – 3 HP 1 PH 230V ArmorGlide, Model 1285T, now features ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T 12″ jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a straight knife cutterhead.

Features:

• ArmorGlide Technology gives you a low-friction, industrial-grade coating
• Rust resistant
• Less maintenance
• More control
• Large 12″ x 84″ precision ground cast iron table surface for heavy-duty work
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
• Straight knife cutterhead with 3 high speed steel knives create a clean cut
• Table “lips” on both sides of cutterhead aid in noise reduction

Specifications:

• Product: 12″ Jointer
• Type: Straight Knife (3)
• Style: Floor Standing Model
• Motor Power: 3 HP
• Motor Phase: Single 1 PH
• Voltage: 230V
• Cycle: 60 Hz
• Cutterhead Speed: 5000
• cuts Per Minute: 15.000
• Cutting Capacity (W x D): 11-3/4″ x 3/4″
• Number of Knives: 3
• Dust Collection Minimum CFM: 800
• Dust Port: 4″
• Infeed Table Length: 47-1/2″
• Net Weight: 762
• Ship Weight: 880 lbs.
• Recommended Circuit Size: 30A

What’s Included:

• (1) Powermatic – 12″ Parallelogram Jointer with ArmorGlide – Straight Knife – 3 HP 1 PH 230V – 1285T

Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

• Your order will ship in 4 -7 approximately business days.
• This product is considered special order. Your account will be charged when you place your order.
• Express or overnight shipping is not available for this product.
• Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.

Warranty Information

Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
