Description

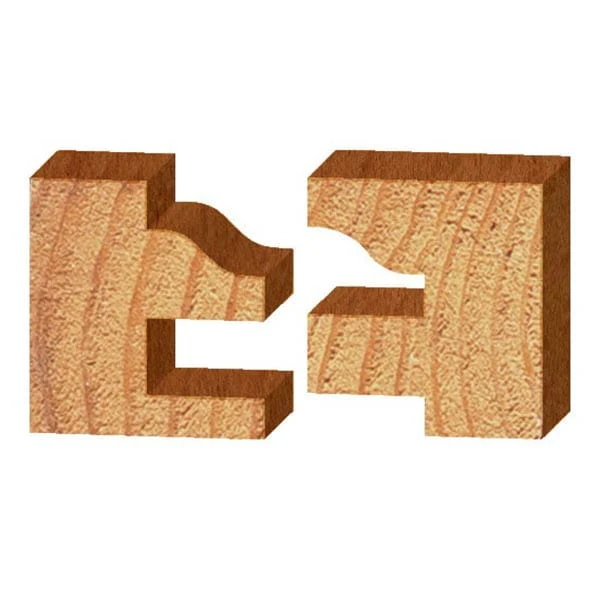

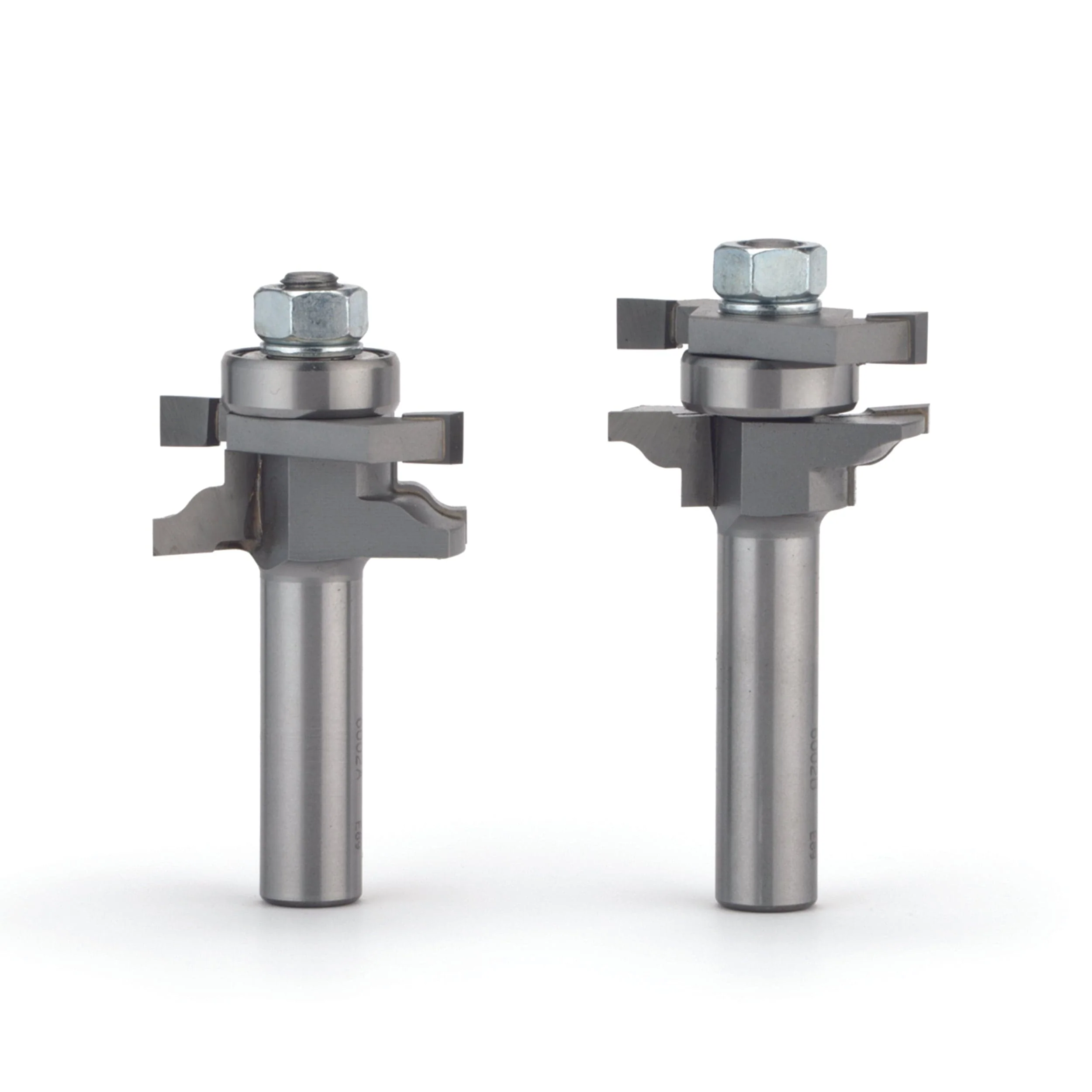

Create full-size stile and rail joints effortlessly on your router table. This innovative design features interlocking joints and a raised panel groove, all cut in a single pass. Ball bearing guides ensure precise cutting depth and allow for use on rounded, arched, or uniquely shaped doors.

With these 2-piece sets, easily switch router bits to transition from cutting stiles to rails. Ideal for stock thicknesses from 5/8″ to 7/8″, these carbide-tipped router bits come with a 1/2″ shank for durability and performance.

Construction Tip: You can make Stile & Rail cuts for glass doors using Whiteside’s Door Construction Sets. No extra components are required. All that’s needed is to stagger the cutting edges and “stack” both groovers on the Stile bit. Use both bearings (no groover) on the Rail bit. Make your cuts just like in normal door construction. Cut the inside edges of all four pieces with the Stile bit. Trim the ends of the Rails with the Rail bit. Assemble door and insert glass pane. Use clips or corner trim mold on the back side to hold the pane in place.D = Diameter; CL = Cutting Length; RW= Reveal Width; SH = Shank Diameter; OL = Overall Length.
