Description

Use this WoodRiver® Circle Cutting Router Jig to cut circles from 2-1/2″ diameter to 32-1/2″ diameter with most any plunge router equipped to accept a Porter-Cable style guide bushing. Instead of bolting the router to the jig using a dedicated bolt pattern, simply install the included precision guide bushing into your router base and lower the router onto the sealed bearing of the circle jig base. Circles can be cut smoothly and easily as the router glides through the cutting motion without tangled cords or dust collection hose. Cutting radius is adjustable through locking the tailstock along the 1/2″ steel guide rods.

Features:

• Works with most any plunge router equipped to accept a Porter-Cable style guide bushing
• Cuts circles from 2-1/2″ diameter to 32-1/2″ diameter
• CNC Machined aluminum base and tailstock
• 1/2″ sealed bearing for smooth operation
• 1/2″ steel guide rods for cut radius adjustment
• Designed for use with a 1/4″ cutter

What’s Included:

• (1) WoodRiver® Circle Cutting Router Jig
• (1) 1/2″ Precision Guide Bushing with Lock Nut
• (1) 1/4″ Pivot Pin
• (1) 1/8″ Pivot Pin

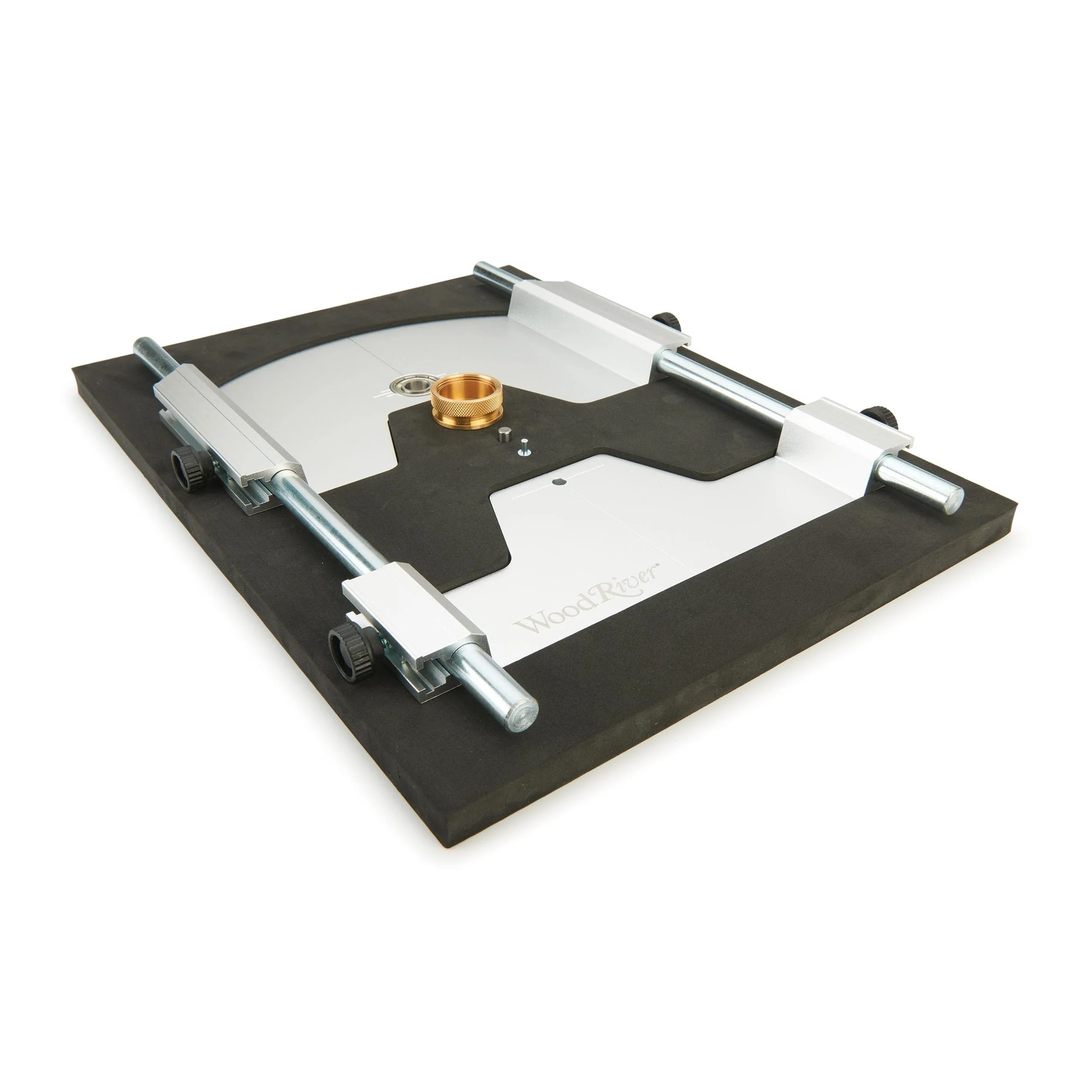

• (1) Foam Storage Insert

Notes:

• Designed for use with a 1/4″ cutter.
